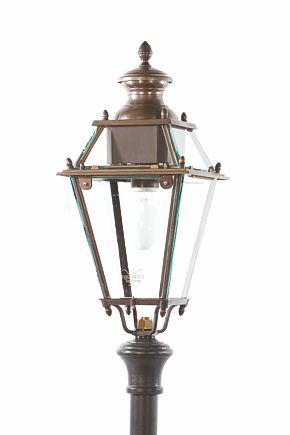

3 - Lanterne GENOVA series

Die cast brass lanterns


BROWN BRONZE BRANCHES
Ex-gas shaped lanterns made of brass die-casting, uprights and decorative details are made of brass and copper, steel fasteners.
Front door swinging on hinges in copper slab.
Welding of the uprights and the door are made of silver alloy. The front door allows quick access to the lamp compartment, allowing both the replacement of the same and the cleaning of the glass.
Finishing surfaces and burning are done in a state of art. Variant with the top closed by a hat in copper slab.
In standard versions the lanterns are fitted with 5mm thick transparent tempered glass.
Alternatively in opal - frosted version, type C.

ELECTRIC CABLING
The electrical wiring is housed in the upper part, above the P-ALP 99.8% UNI 4509 Aluminum Plate Reflector screen, brushed and anodised.
To comply with the containment directives
Light pollution and energy savings are also available with CUT-OFF reflector versions for ground light diffusion and a lower glare factor

FINISHING AND PAINTING
The oxidation process, to confer the characteristic
Brunette coloring is carried out according to the ancient method of sulfur and after treatment the brass surfaces do not require any paint or maintenance.
By aging they acquire old splendor. Copper finish is done after burning with a transparent acrylic paint dried in the oven.

GLASSES

The 5 mm thick glasses, transparent or opaque printed C, are thermally tempered to EN 12150.
Resistant to thermal shock and mechanical impact, they are compliant with EN 60598-2-3 clause 3.6.5 and, in case of breakage, they crumble into tiny harmless fragments.
They do not yellow to exposure to U.V. rays. Both solar and emitted by the lamps themselves, and are resistant to salamis and atmospheric agents in general.
